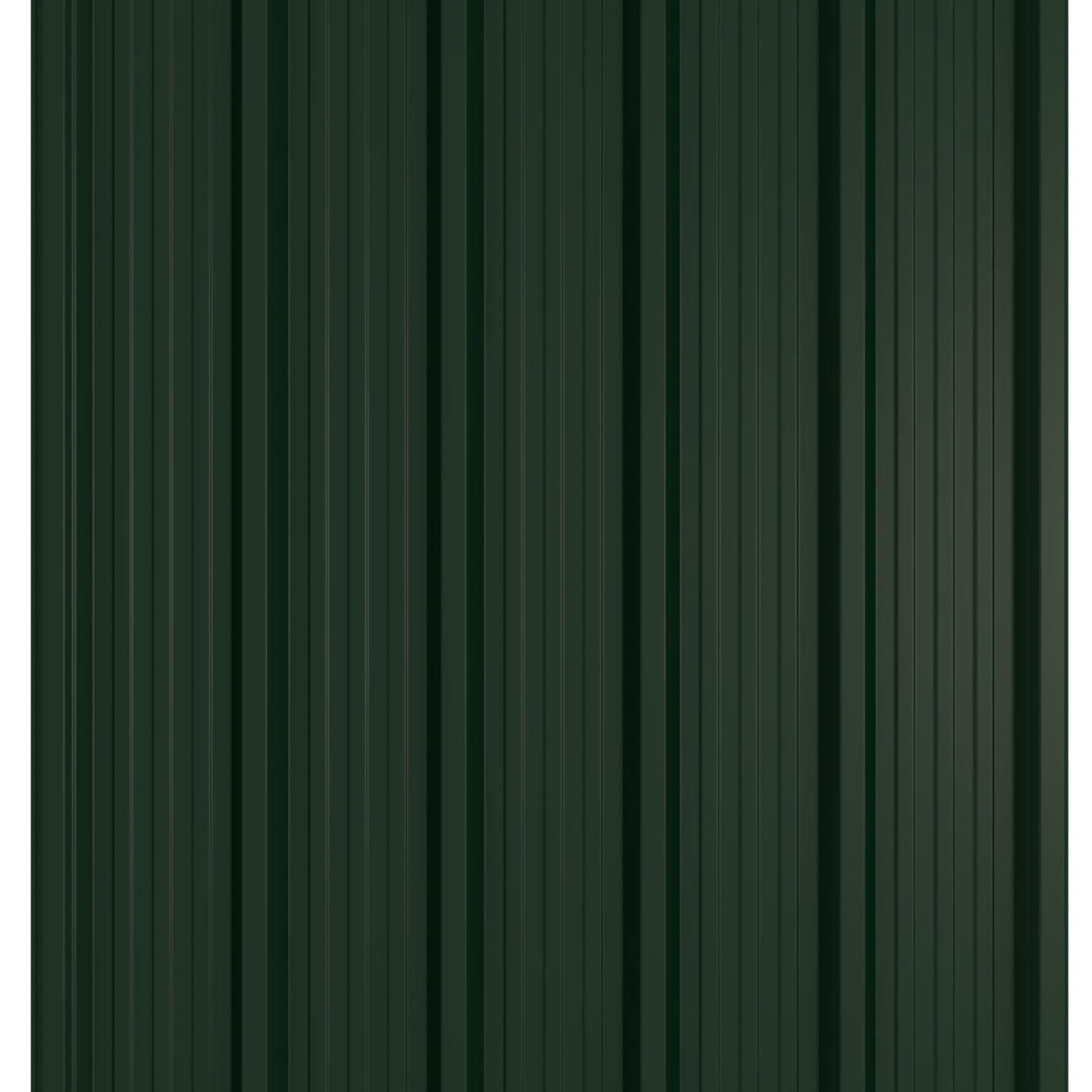

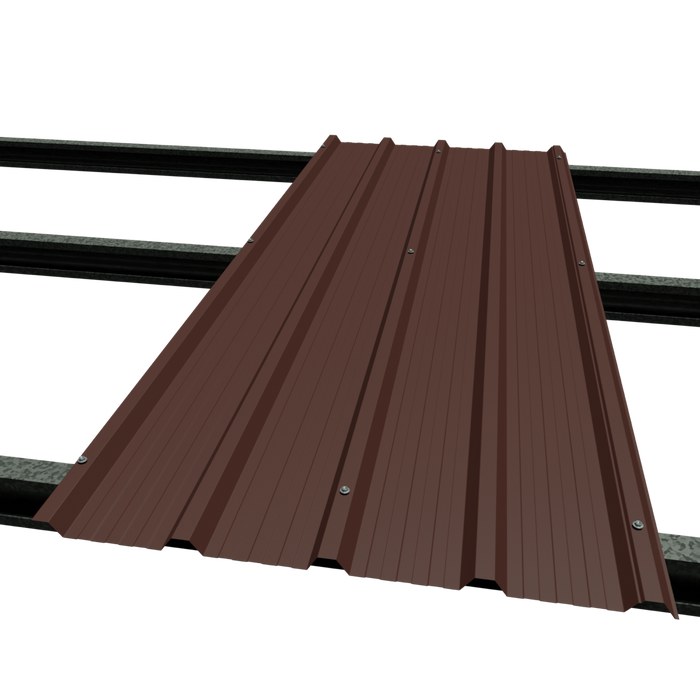

IT5 Roofing Sheets
A strong box-profile mabati with six closely spaced ribs and an 820 mm effective cover. The extra rib gives a stiff, bold-looking sheet, and an anti-capillary groove helps keep water out.
- 820 mmEffective cover width
- 1000 mmOverall sheet width (1 m)
- 6Ribs per sheet
- 28–30Gauge range
Colour:
Prefer to talk? Call our hotline +255 792 312 166 or visit one of our 8 branches.
Six ribs for a strong, bold roof

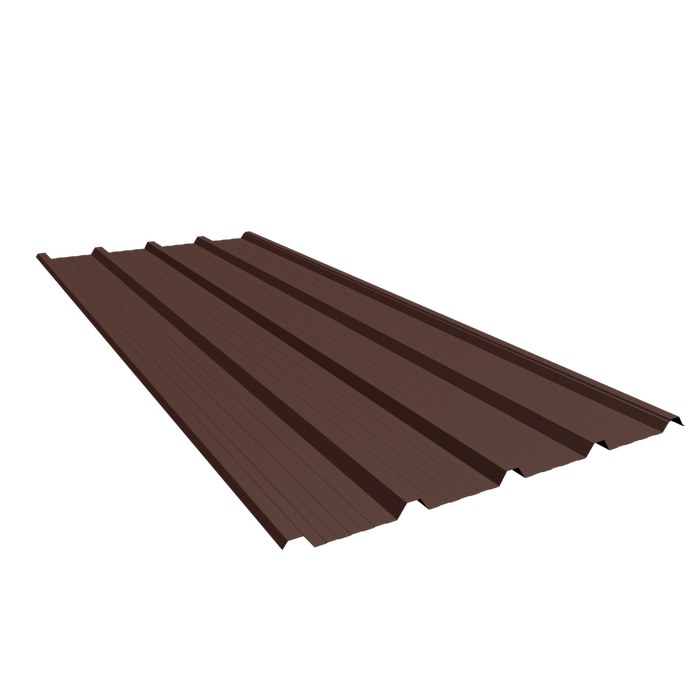

Dragon IT5 roofing sheets are a box-profile mabati with six ribs and an effective cover width of 820 mm (1 m overall). The ribs are 60 mm wide with 100 mm valleys between them, so they sit closer together than on IT4. That gives the sheet extra stiffness and a bold, modern look.
The trapezoidal ribs give the sheet stiffness and a clean, modern look, and an anti-capillary groove along the overlap helps stop water being drawn back under the sheet. IT5 comes in gauge 28 to 30 with the matching accessories you need, including ridge caps, valleys and roofing nails.
Where to use IT5
IT5 suits family homes, schools, health facilities, offices and warehouses. Choose from five colours: Tile Red, Blue, Dark Green, Brick Red and Grey. Order at any of our eight branches in Dar es Salaam, Arusha, Mwanza, Mbeya, Tabora, Tanga, Dodoma and Makambako.
- Homes
- Schools
- Health facilities
- Offices
- Warehouses

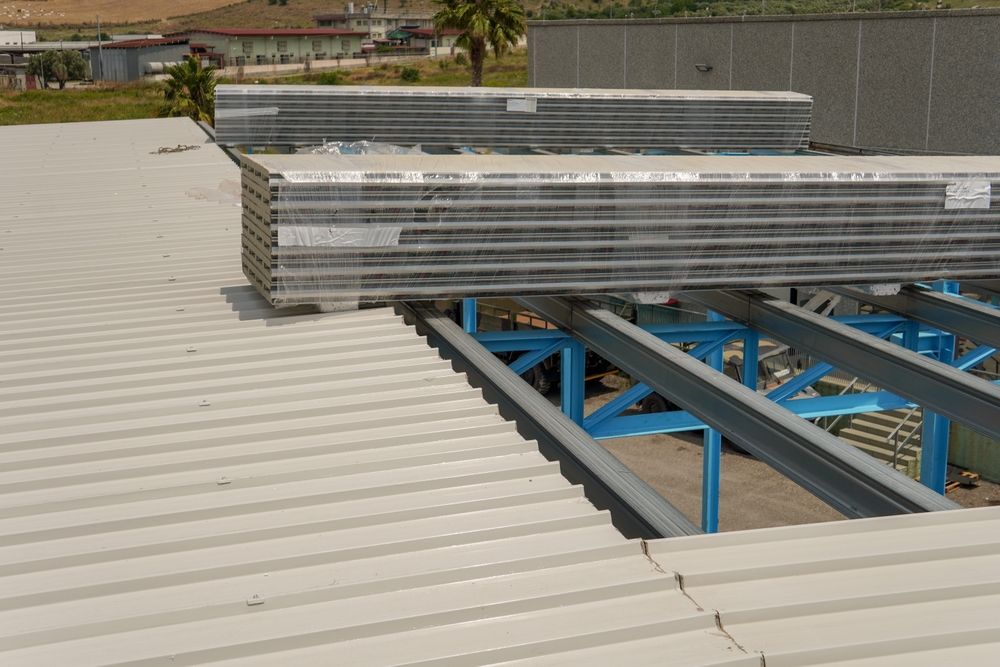

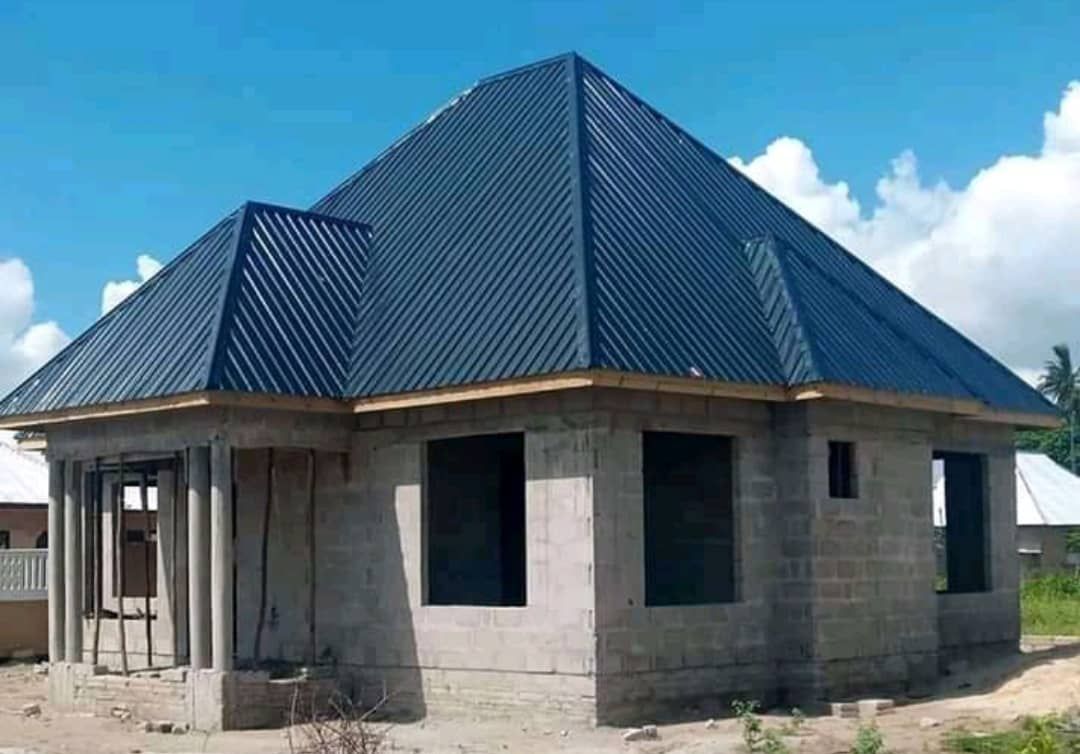

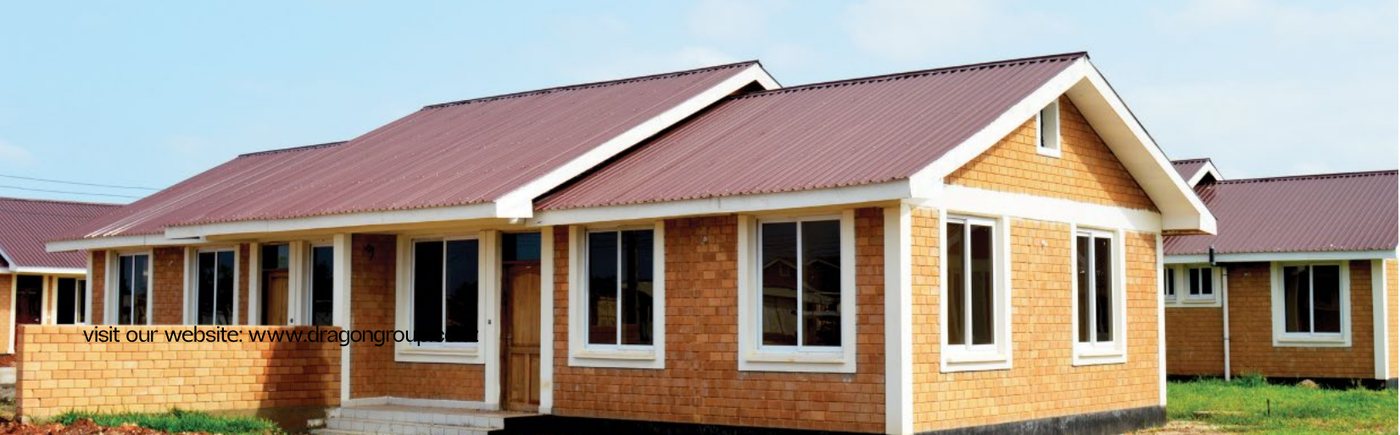

Box-profile roofing on real buildings
A strong six-rib box profile for homes, schools, warehouses and housing projects.

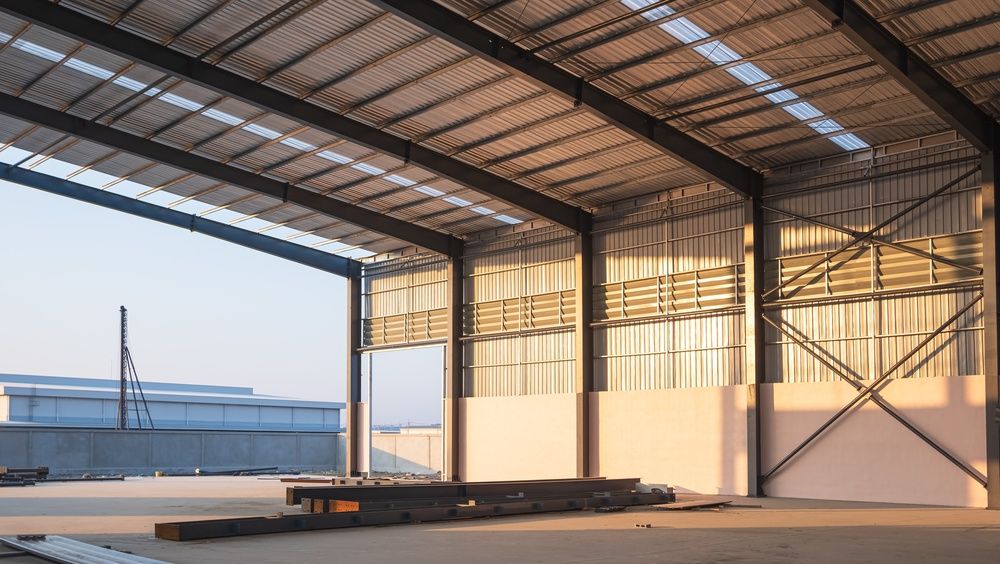

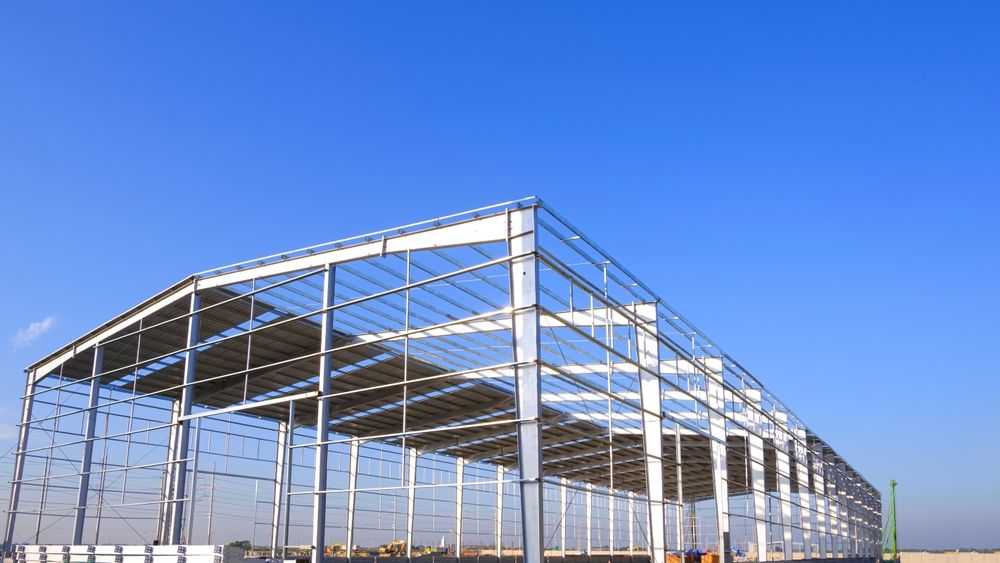

Box profile for big, modern roofs
Straight, deep ribs carry heavy rain away quickly and give a crisp, contemporary look.
IT5 specifications
Profile dimensions and colours are taken from our latest product flyer. Coating details apply to our pre-painted galvanised range.
IT5 Roofing Sheets
Technical specifications| Profile | Trapezoidal box profile, 6 ribs |
|---|---|
| Effective cover width | 820 mm |
| Overall width | 1000 mm (1 m) |
| Rib width | 60 mm |
| Valley width | 100 mm |
| Rib height | 25 mm |
| Gauge | 282930 |
| Material | Pre-painted galvanised steel |
| Zinc coating | Z/122 GSM |
| Paint coating | Regular modified polyester |
| Paint thickness (top) | > 20 µm |
| Paint thickness (bottom) | > 7 µm |
| Sheet length | Cut to order, 1 m – 12 m |
| Anti-capillary groove | Yes |
| Accessories | Ridge cap, valley, roofing nails |
Profile drawing
IT5 cross-section (not to scale)Choose your colour
Pick a colour above to add it to your WhatsApp order, or compare the standard shades here.
Why builders choose IT5
Six strong ribs
Six 60 mm ribs with 100 mm valleys give a stiff sheet that holds its shape on site.
Anti-capillary groove
Helps prevent water being drawn under the overlap, reducing the risk of leaks.
Gauge 28–30
Choose the thickness that suits your structure and budget.
Five colours
Tile Red, Blue, Dark Green, Brick Red and Grey to match your design.
Clean, modern look
Sharp trapezoidal ribs give an attractive finish on homes and commercial buildings.
Matching accessories
Ridge caps, valleys and roofing nails for a complete roofing system.
Specifications, quotes and branches
Download the full 2026 brochure, ask for a quotation on WhatsApp, or visit a branch near you.
Questions about IT5 Roofing Sheets
What is the cover width of IT5 roofing sheets?
Dragon IT5 has an effective cover width of 820 mm and an overall sheet width of 1000 mm (1 m), with six 60 mm ribs and 100 mm valleys.
Which gauges are available for IT5?
IT5 is available in gauge 28 to 30. Our team can help you choose the right gauge for your roof structure.
What colours does IT5 come in?
IT5 comes in Tile Red, Blue, Dark Green, Brick Red and Grey. Ask your branch to see a sample before ordering.
Can IT5 sheets be cut to my roof length?
Yes. Sheets are cut to the lengths you order, so you get fewer joints and less waste. Share your roof measurements with our team for a quotation.
How do I buy IT5 roofing sheets?
Tap Buy now to send your order on WhatsApp, call +255 792 312 166, or visit one of our eight branches across Tanzania.
