IT4 Roofing Sheets
A trapezoidal box-profile mabati for homes, light industrial and commercial roofs, where economy and good looks both matter.
- 840 mmEffective cover width
- 1000 mmOverall sheet width (1 m)
- 4 / 5Troughs / ribs
- 400 mmMinimum curve radius
Colour:
Prefer to talk? Call our hotline +255 792 312 166 or visit one of our 8 branches.
The everyday box profile

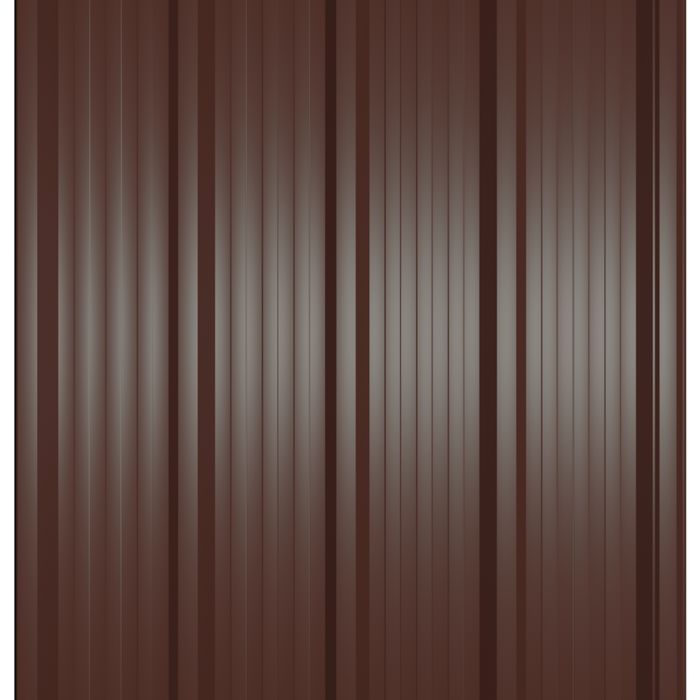

Dragon IT4 roofing sheets are a box-profile roofing material available in a variety of colours. The trapezoidal shape, with box crests and valleys, makes IT4 suitable for both roofing and wall cladding.
Each sheet has four troughs and five ribs. The ribs are 60 mm wide and the 152 mm valleys (troughs) are stiffened with two 25 mm strips, giving the sheet strength without extra weight. IT4 can also be factory-cranked into curves with a minimum radius of 400 mm for curved roofs and canopies.
Best for
IT4 is aimed at domestic, light industrial and commercial buildings where the goal is economy and good looks. It is one of the most popular mabati profiles for family homes across Tanzania.
- Homes
- Shops
- Light industrial
- Wall cladding

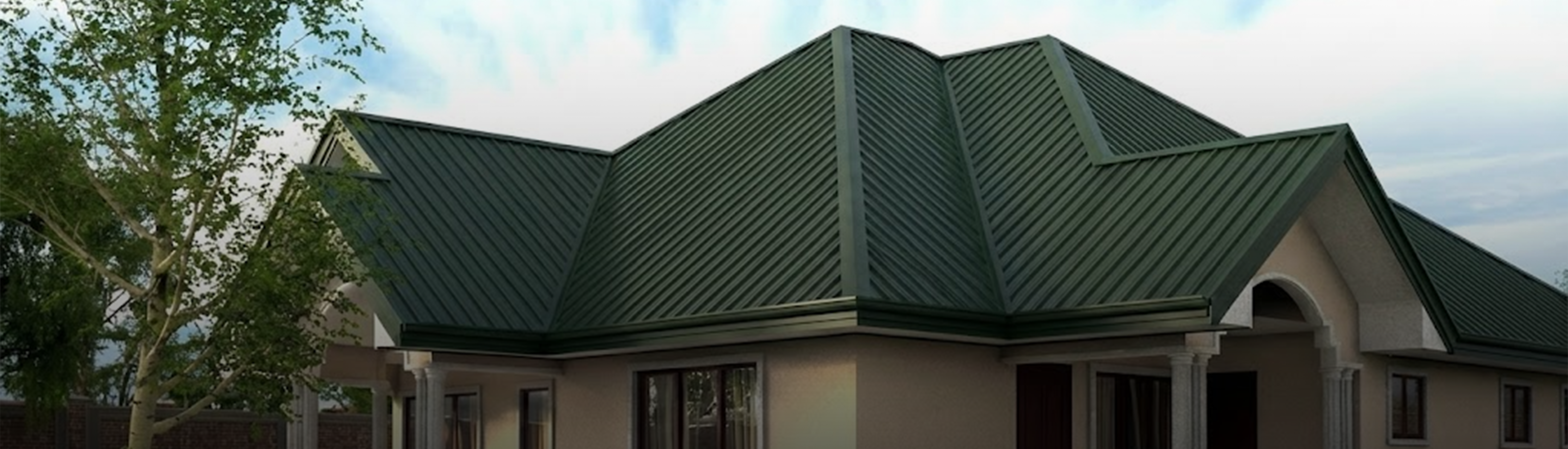

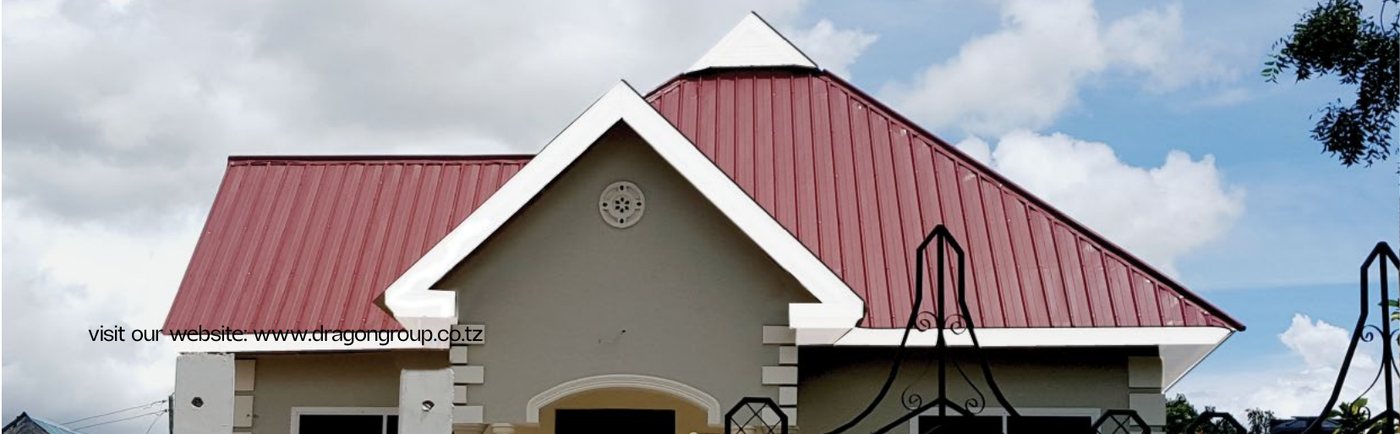

Box-profile roofing on real buildings
A clean box profile for homes, light commercial roofs and wall cladding.
Box profile for big, modern roofs
Straight, deep ribs carry heavy rain away quickly and give a crisp, contemporary look.
IT4 specifications
Profile dimensions and colours are taken from our latest product flyer.
IT4 Roofing Sheets
Technical specifications| Profile | Trapezoidal box profile |
|---|---|
| Effective cover width | 840 mm |
| Overall width | 1000 mm (1 m) |
| Rib width | 60 mm |
| Valley width | 152 mm |
| Rib height | 25 mm |
| Troughs / ribs | 4 troughs, 5 ribs |
| Curving | Factory cranked, minimum 400 mm radius |
| Material | Pre-painted galvanised steel |
| Zinc coating | Z/122 GSM |
| Paint coating | Regular modified polyester |
| Paint thickness (top) | > 20 µm |
| Paint thickness (bottom) | > 7 µm |
| Thickness range | 30G28G26G24G |
| Sheet length | Cut to order, 1 m – 12 m |
Profile drawing
IT4 cross-section (not to scale)Choose your colour
Why choose IT4
Roofing and cladding
The trapezoidal box profile works on roofs and as wall cladding.
Economical
Designed for domestic and light commercial buildings where value matters.
Stiffened valleys
Wide 152 mm troughs stiffened with two 25 mm strips for strength.
Can be curved
Factory cranking to a minimum 400 mm radius for curved roofs.
Five colours
Tile Red, Blue, Dark Green, Brick Red and Grey.
Specifications, quotes and branches
Download the full 2026 brochure, ask for a quotation on WhatsApp, or visit a branch near you.
Questions about IT4 Roofing Sheets
What is the cover width of IT4 roofing sheets?
Dragon IT4 has an effective cover width of 840 mm and an overall width of 1000 mm (1 m).
How many ribs does IT4 have?
IT4 has four troughs and five ribs. The ribs are 60 mm wide and the troughs 152 mm wide, stiffened with two 25 mm strips.
Can IT4 be used for curved roofs?
Yes. IT4 can be factory cranked into curves with a minimum radius of 400 mm.
What is the difference between IT4 and IT5?
Both are box profiles. IT4 has five ribs with wide 152 mm valleys and covers 840 mm per sheet. IT5 has six ribs with closer 100 mm valleys and covers 820 mm per sheet.
How do I order IT4 roofing sheets?
Tap Buy now to order on WhatsApp, call +255 792 312 166, or visit any of our eight branches.
